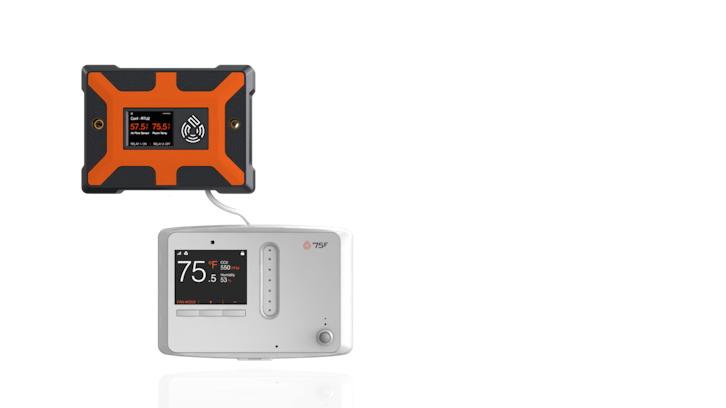

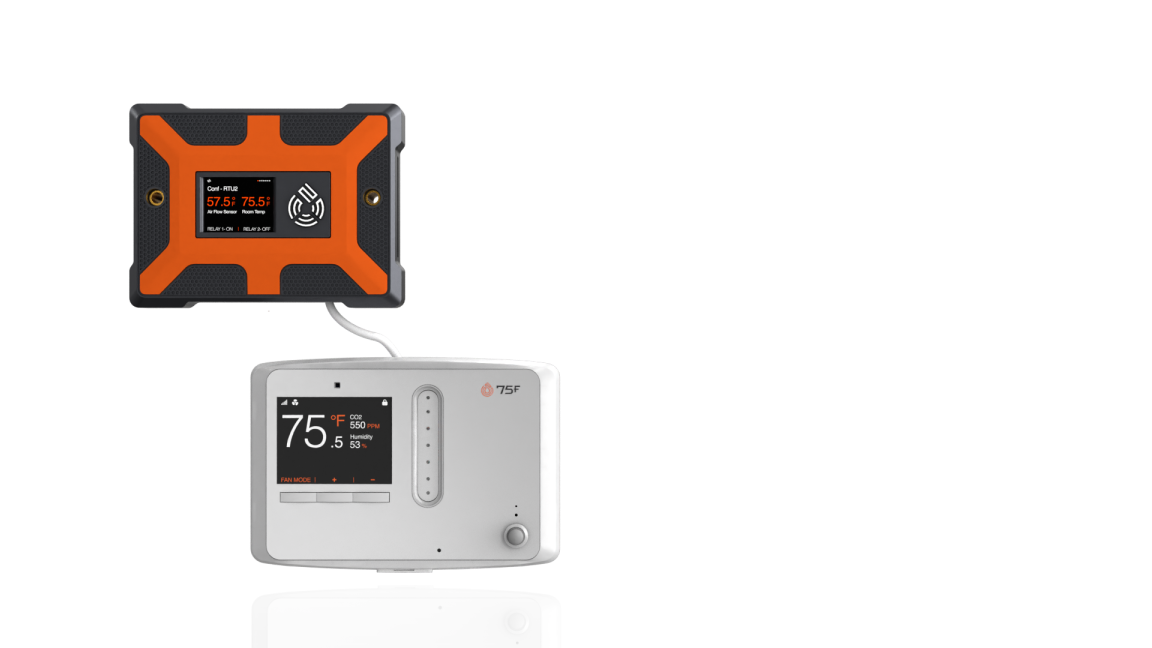

75F® HyperStat Split™

SPLIT YOUR TIME IN HALF WITH ADVANCED RTU UPGRADES OVER TWO WIRES

Data Sheet

HyperLite

Dimensions 6.5” x 4.5” x 1.15” (165mm x 115mm x 29 mm)
Screen 2.8” 240x320 pixel TFT LCD
Mounting Two (2) screws in drywall
Operating Temp -4°F to 122°F (-20°C to 50°C)

Connect Module

Dimensions 5.5” x 4.13” x 1.22” (140 mm x 105 mm x 31mm)
Screen TFT LCD, 1.77", 128(RGB)* 160 Pixels
Mounting Wall

Connect Module

Inputs   A. (8) Universal inputs.
B. (1) Sensor Bus
Outputs C. (4) 0-10V dc or 4-20mA analog outputs
D. (8) relays rated at 1A, 120V ac or 24 V ac/dc resistive load

HyperLite

Temperature Operating range between -4°F to 122°F (-20°C to 50°C); typical accuracy of +/- 1°F or 0.2°C
Humidity Operating range between 20 to 85% noncondensing; Typical accuracy of +/- 2% RH
Dedicated CO2 Sensor Range 0-40’000 ppm; Accuracy +/-30ppm over range of 400- 10,000ppm and lifetime of 15 years
Light Ambient light sensor; high-accuracy UV index sensor; matches erythemal curve; < 100 mix resolution
Occupancy Passive Infra Red (PIR) with detection range of 4m with 30-degree angle
Sound 40-120dB response for 100 Hz to 10Khz
PM2.5, PM10 Detection range of 0-1000ug/m3 and accuracy of +/- 10ug/m3 (PM2.5, 0-100 ug/m3) or +/- 25ug/m3 (PM10, 0-100ug/m3)

HyperLite

Power 24V AC/DC (+/-15%) with nominal power consumption 1.0W and maximum consumption of 2.5W

Connect Module

Power 24V AC/DC (+/-15%) with nominal power consumption 1.0W and maximum consumption of 2.5W

HyperLite

Bluetooth BLE5.4; used during commissioning
Mesh 900 MHz IEEE 802.15.4-compliant; used for device communication on mesh network
Wired 4 wire RS-485 interface 3 wire connector for low-power sensor bus

Connect Module

Bluetooth Bluetooth – Available for future use.
Wired • Modbus RTU / BACnet over RS485 communication
• Sensor bus
• Power over RS485 to enable communication with the HyperLite and power the unit over standard thermostat wires.
• Dedicated Modbus/BACnet MSTP ports to interface with 3rd party BMS devices.
Download Spec Sheet

75F HyperStat Split is AHR Innovation Award Winner

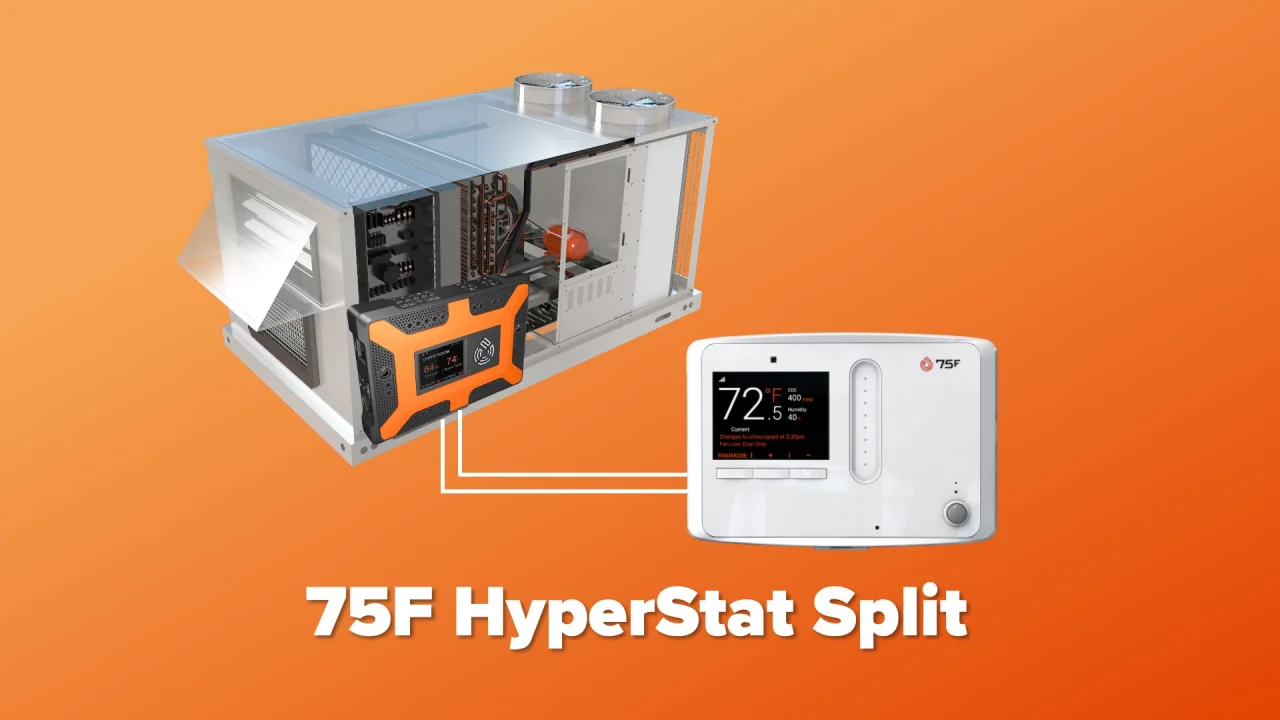

Designed to work over a temperature sensor's existing two wires, HyperStat Split delivers advanced RTU upgrades faster and easier.
