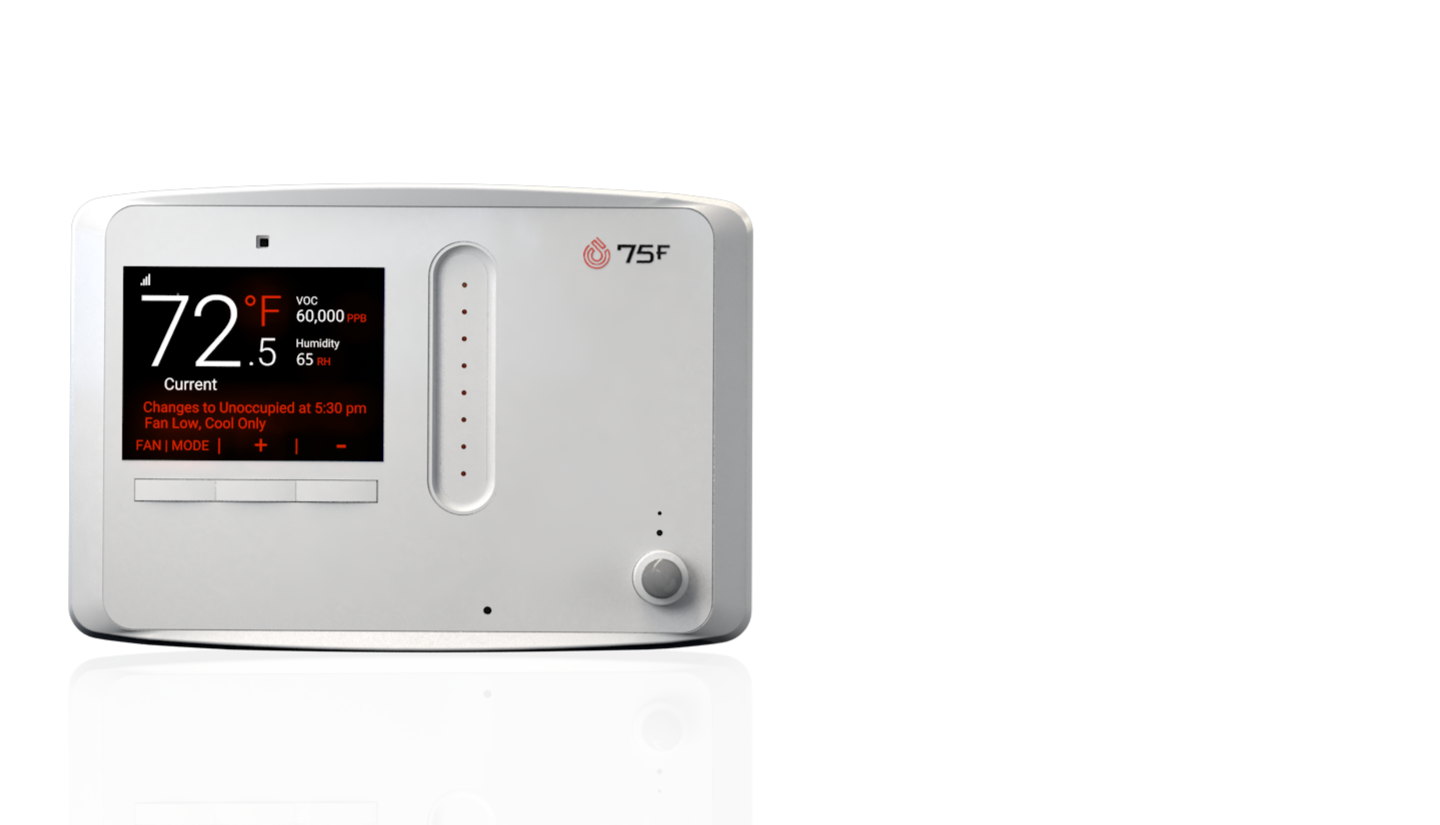

75F® HyperStat™
The world’s most advanced thermostat & humidistat, with eight on-board IAQ sensors for hyper-localized control.
Variant: HyperStat Split
Designed to work with a basic temperature sensor's existing two wires, HyperStat Split makes advanced RTU upgrades faster and easier for contractors to sell.
Variant: HyperStat BACnet
The HyperStat with BACnet MSTP is a wired (RS-485) thermostat, humidistat, and IAQ sensing station — reap all the offline benefits of the standard HyperStat in a building with an existing controls system.
Auto Away and Force Occupied Settings
The HyperStat's Auto Away and Force Occupied settings give facilities teams hands-free energy savings by dynamically controlling setback periods at the zone level using occupancy data.
Control up to three stages of cooling, heating, fan or fully modulated equipment.

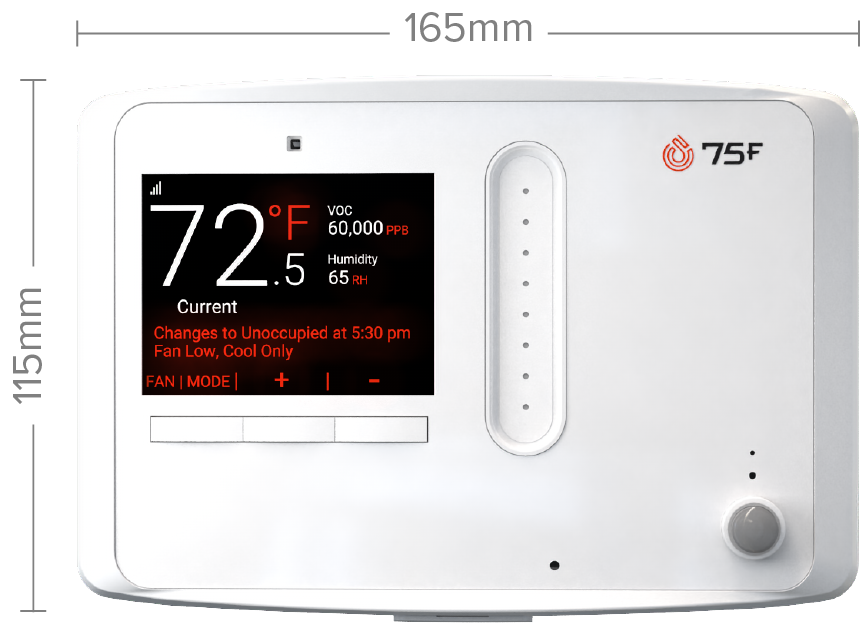

| Dimensions | 165mm x 115mm x 29mm (6.5” x 4.5” x 1.15”) |
| Screen | 2.8” 240x320 pixel TFT LCD |
| Mounting | Two (2) screws in drywall |
| Operating Temp | 0-122°F (-17-50°C) |
| Inputs | (2) 10K Type-2 thermistor inputs with 2% accuracy |
| (2) 0-10V analog voltage inputs with 2% detection accuracy |

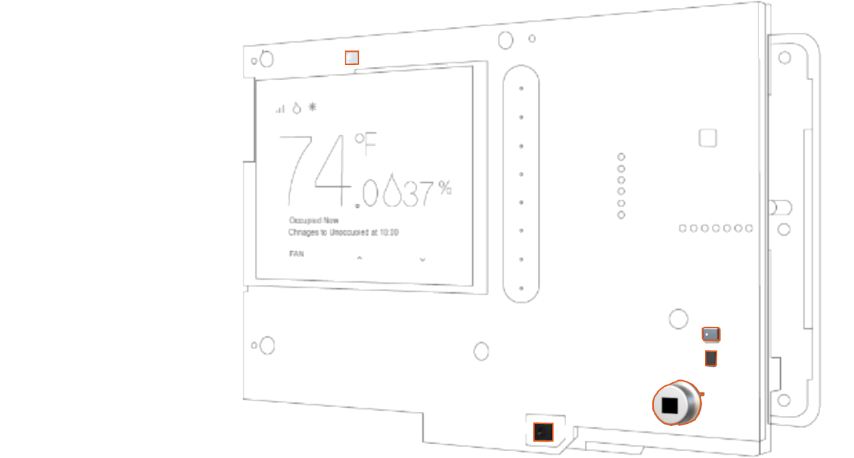

| Temperature | Typical +/- 0.2C |
| Humidity | Typical +/- 2% RH |
| PM2.5, PM10 | Optional; detection range of 0-1000ug/m3 and accuracy of +/- 10ug/m3 (PM2.5, 0-100ug/m3) or +/- 25ug/m3 (PM10, 0-100ug/m3) |
| Light | High-accuracy UV index sensor; matches erythemal curve; ambient light sensor; <100 mlx resolution |
| Occupancy | Passive Infra Red (PIR) with detection range of 4m with 15 degree angle |
| VOC Sensor with Derived CO2 | TVOC within 15% of measured value. CO2 within 620 ppm. |
| Sound | 40-120dB response for 100 Hz to 10Khz |
Read More
Hiranandani Hospital
See how 75F's innovative solutions improved Hiranandani Hospital's energy efficiency, saving a remarkable 5,54,388 kWh Energy.Explore case study now.
Case StudyRead More
Energy Efficiency Resources
Energy Solutions contractor projects 40% growth with utility incentives and 75F

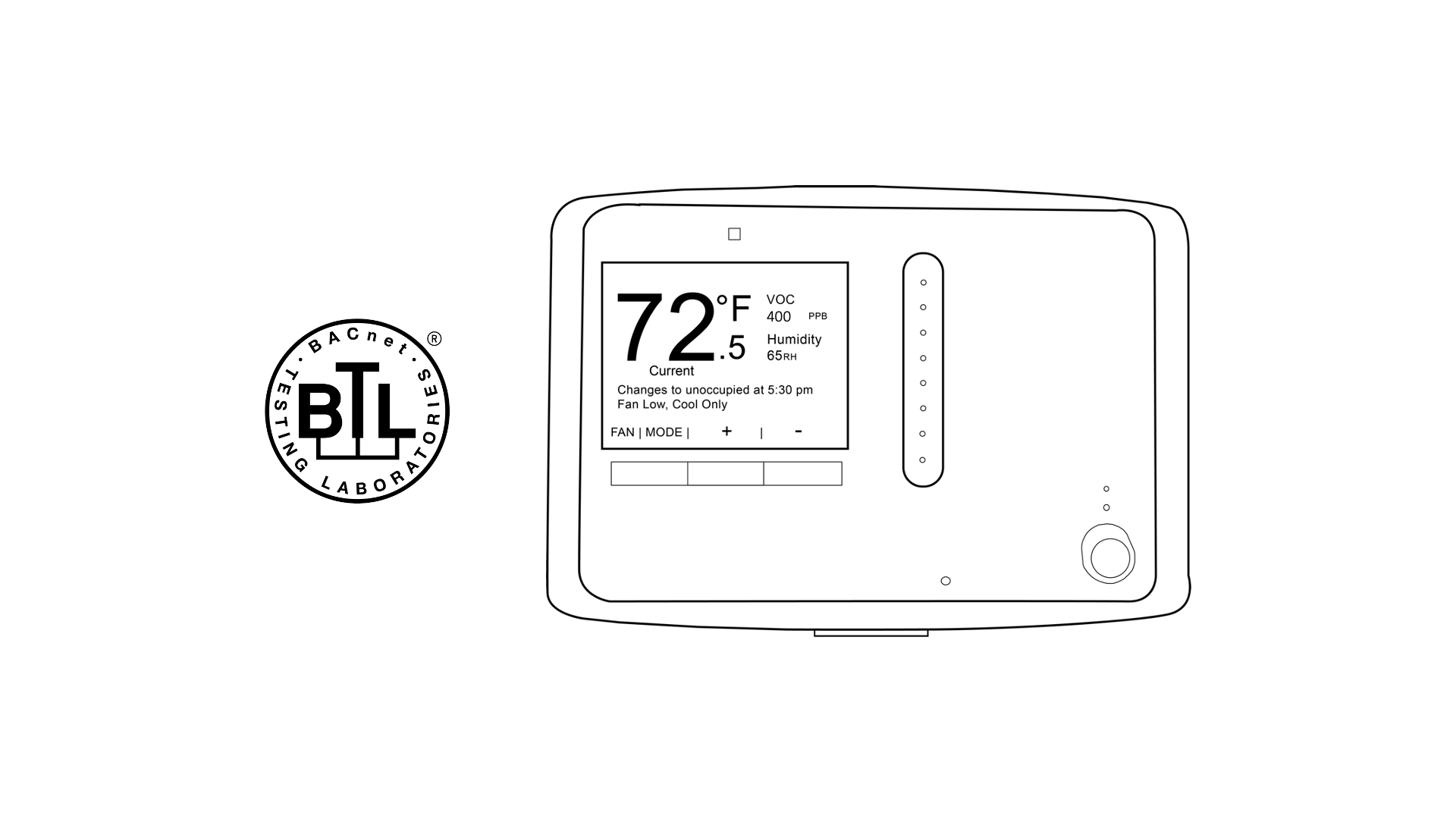

75F® HyperStat™ is BACnet Listed
A hardwired configuration of the original 75F® HyperStat™ is now available to buildings with an existing BMS via BACnet MSTP.
75F HyperStat Earns Gold in 2022 Dealer Design Awards
The Dealer Design Awards recognized innovative products with features that make life easier for contractors. The HyperStat earned gold in Indoor Air Quality.
Optimizing Commercial Buildings with Smart Demand Response
75F's smart demand response solution uses AI to prioritize occupancy, optimize air quality, and deliver energy savings across a commercial portfolio.
The smartest thermostat in the room
The 75F® HyperStat™ comes packed with powerful features designed to simplify your life. Among those is an intelligent auto-away sequence that allows your HyperStat to shift HVAC operation in and out of setback modes dynamically based on occupancy, regardless of your building's current schedule.
Monitor & Control from Anywhere
Facility directors have real time access to sensor data and remote control over building parameters through the HyperStat’s integration with Facilisight, 75F’s building intelligence suite of web and mobile apps.
New ProductView More

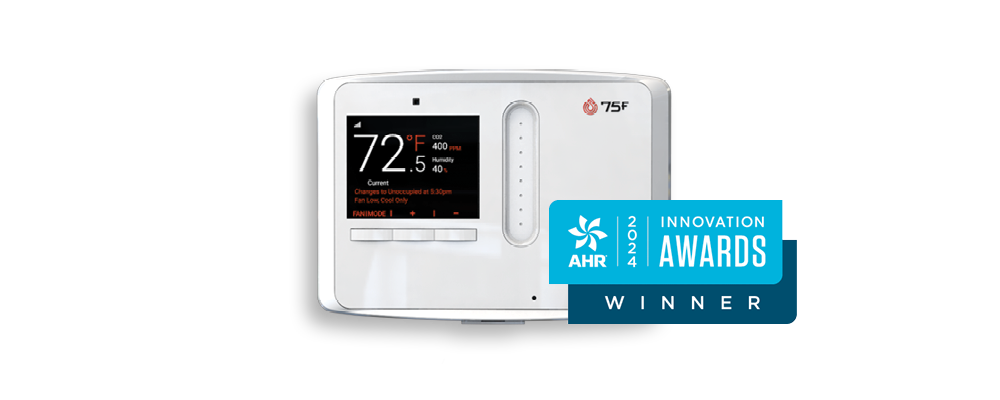

Introducing the 75F HyperStat Split
The HyperStat Split simplifies upgrading PACUs or CSUs with advanced AC control.

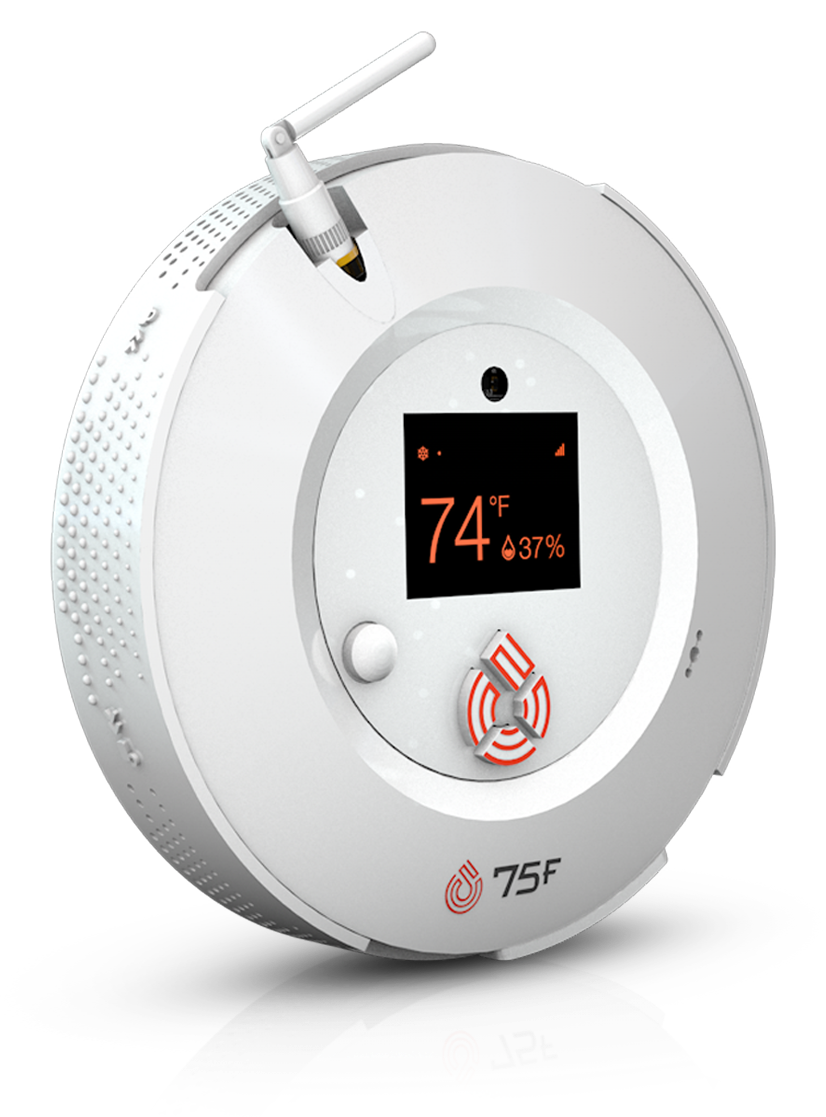

Smart Node
A wireless commercial HVAC terminal equipment controller with 11 Interface ports for nearly any equipment type or brand.
Sensors
75F’s commercial indoor air quality (IAQ) sensors bring efficiency and comfort to spaces where it matters most.
