Introducing the Helio Node: Merging IAQ Sensing & Equipment Control in One Device
75F is proud to announce the Helio Node, a first-of-its-kind controller bundled with five sensors and flexible mounting options for energy efficiency and IAQ
0
75F® Helio Node™
A multi-role equipment controller with occupancy and air quality sensors

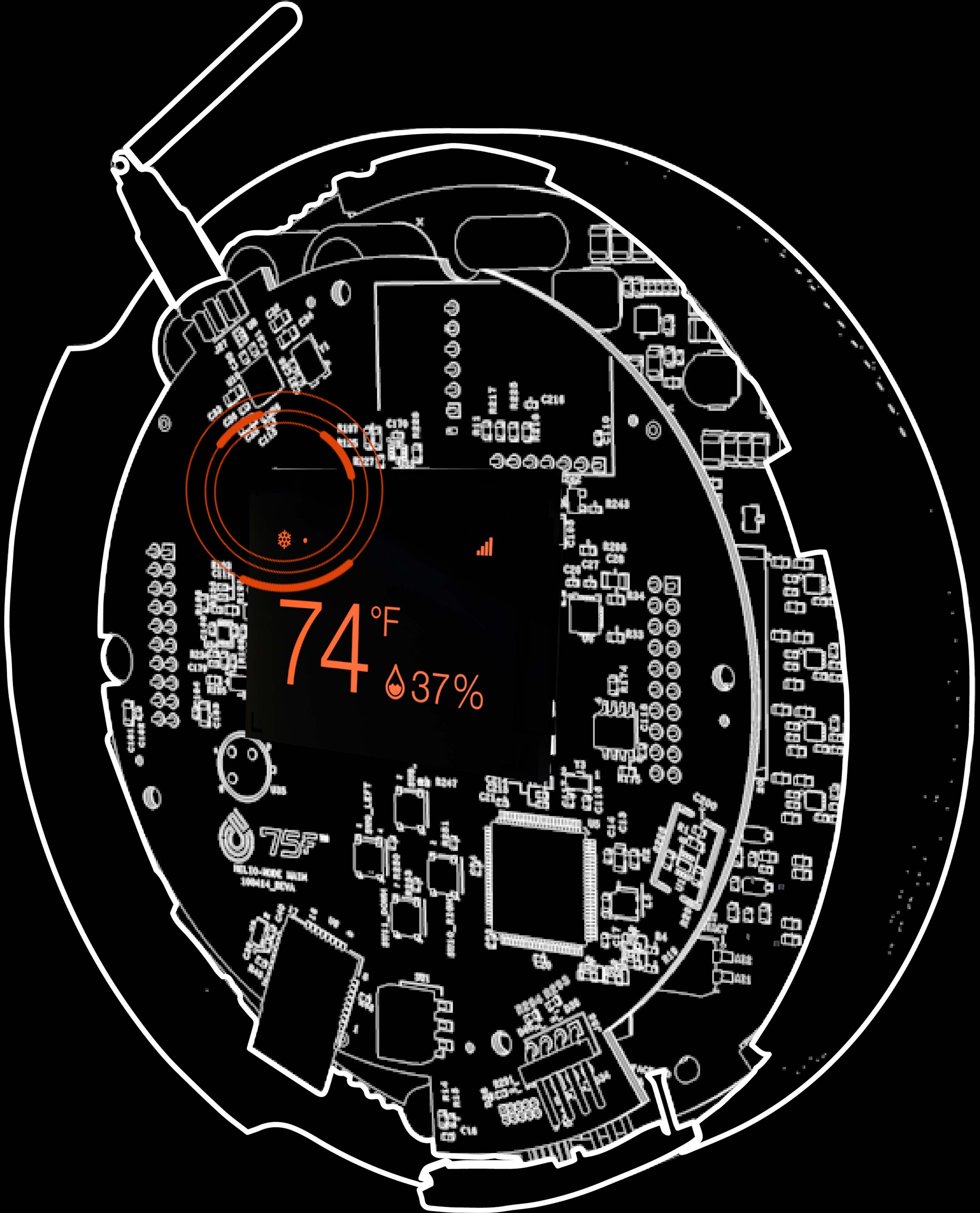

Field Test & Troubleshoot
LCD Display
Faster pairing, connecting, testing and troubleshooting for simpler, more consistent installations.
Field Test & Troubleshoot
LCD Display
Faster pairing, connecting, testing and troubleshooting for simpler, more consistent installations.
| Dimensions | 5.49” x 1.37” (139.37mm x 34.75mm) |
| Mounting | Spring or pipe |
| Screen | TFT LCD, 1.77", 128(RGB)* 160 Pixels |
| Inputs |
A. (2) thermistor inputs. 10K B. (2) 0-10V dc analog inputs. |
| Outputs |
A. (2) 0-10V dc or 4-20mA analog outputs B. (2) relays rated at 1A, 120V ac or 24 V ac/dc resistive load |
| Temperature | 14°F to 122°F (-10°C – 50°C); typical accuracy of +/- 1°F or 0.2°C |
| Humidity | 0 to 85% RH; Typical accuracy of +/- 2% RH |
| Dedicated CO₂ Sensor | Range 0-40’000 ppm; Accuracy +/-30ppm; drift +/- 50ppm over range of 400-5000ppm and lifetime of 15 years |
| Ambient Light | High-accuracy UV index sensor; matches erythemal curve; < 100 mix resolution |
| Occupancy | Passive Infra Red (PIR) with detection range of 4m with 30-degree angle |
| Power | 24V AC/DC (+/-15%) with nominal power consumption 1.0W and maximum consumption of 2.5W |
| Bluetooth | Bluetooth (BLE4.2) for commissioning |
| Mesh | 900 MHz IEEE 802.15.4-compliant for communication to CCU |
| Wired | 4 wire port for power/communication to sensor |
